Seven Florence Bridges

There are seven bridges over the River Arno in the central area of Florence, of which only one (The Ponte Vecchio) is an original old structure, the remainder of the old bridges having been destroyed by the retreating German army at the end of World War 2.  Of the new bridges, 2 are replicas of the original structure and 4 are of new design, but all are of interest.

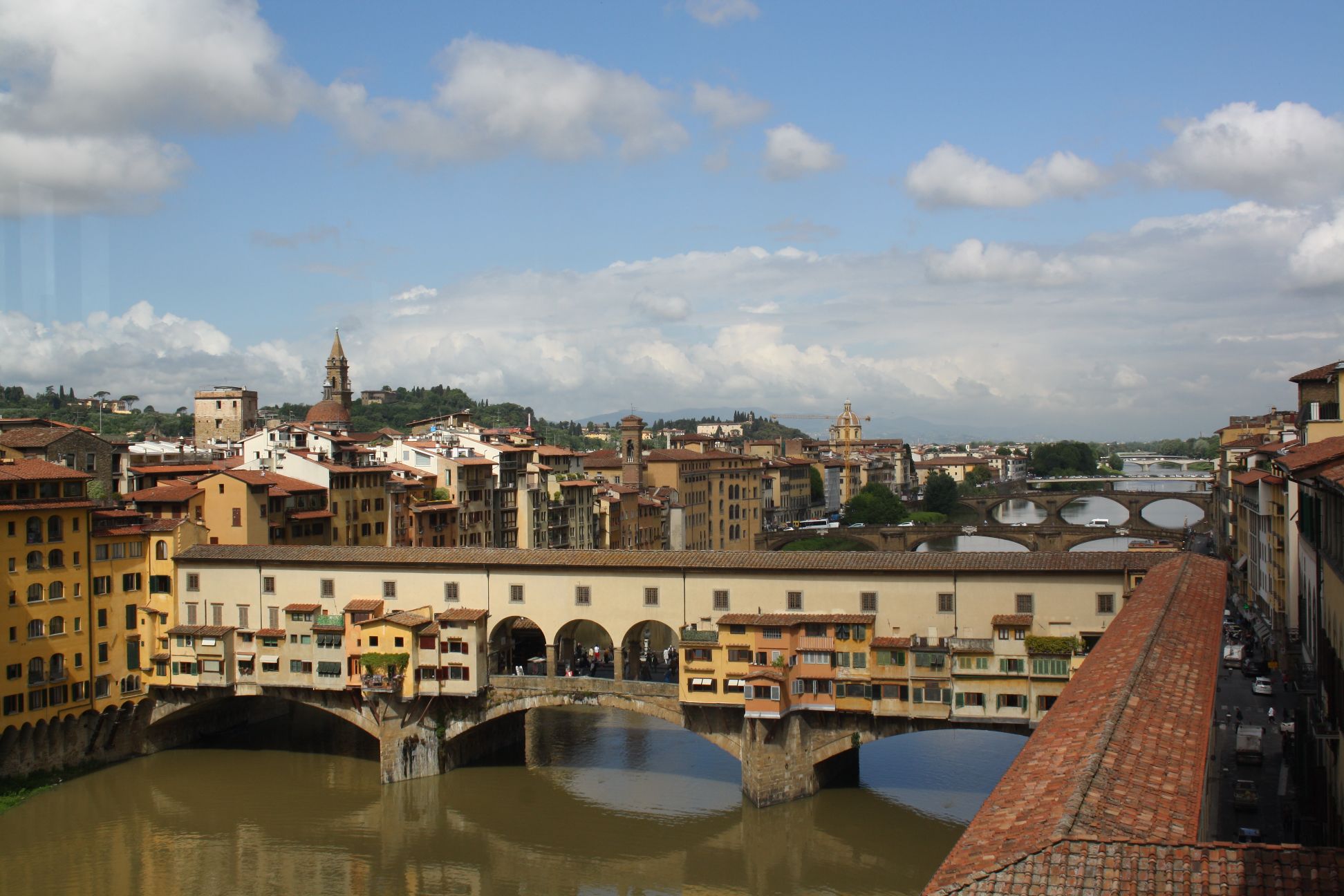

5 bridges over the Arno, looking downstream with the Ponte Vecchio in the foreground.

The first and last of the seven structures are reinforced concrete arch bridges:

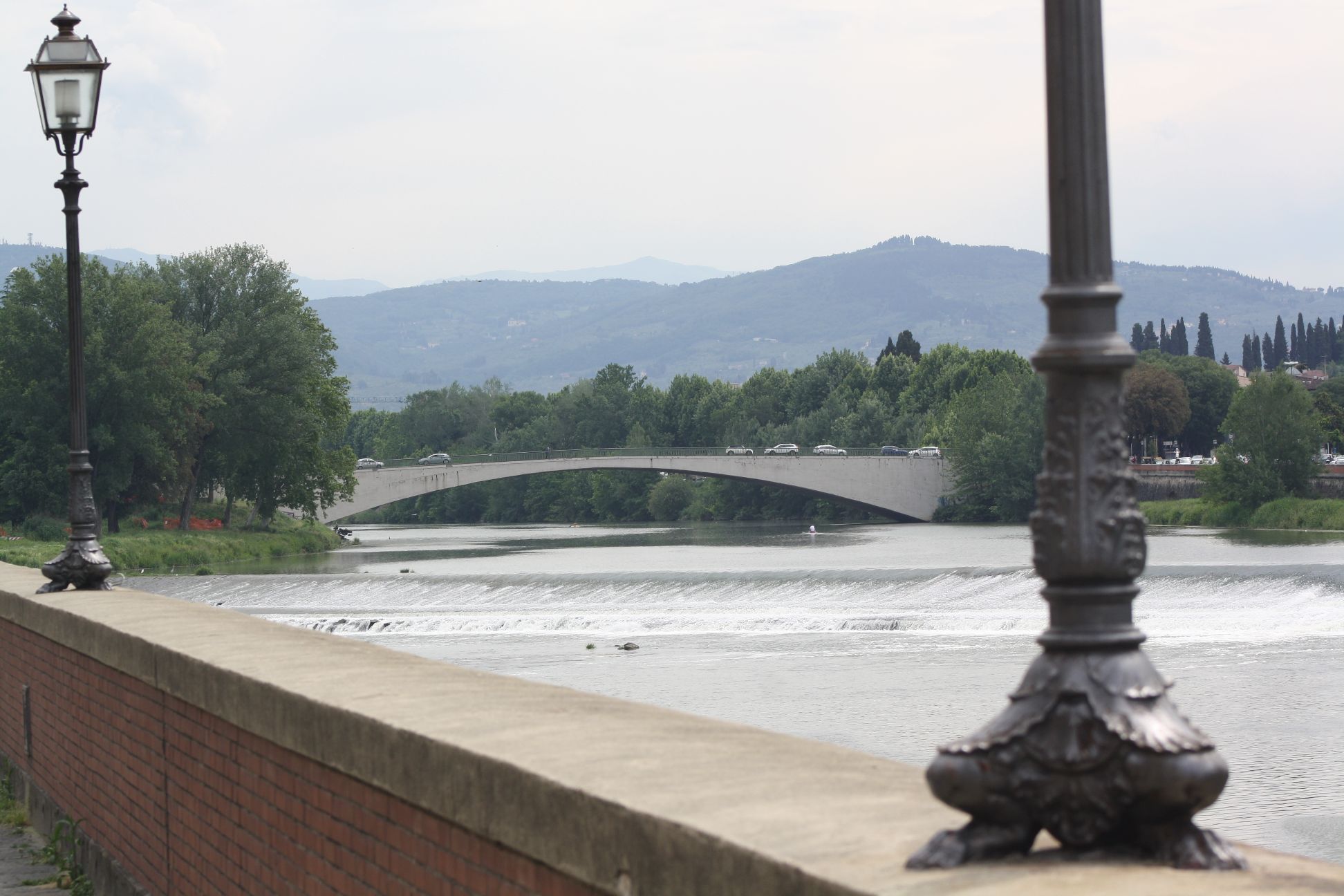

The Ponte di San Niccolo is an elegant single span designed by Riccardo Morandi and constructed between 1947 and 1949.  It replaced a steel suspension bridge built between 1836 and 1837.

Ponte di San Niccolo

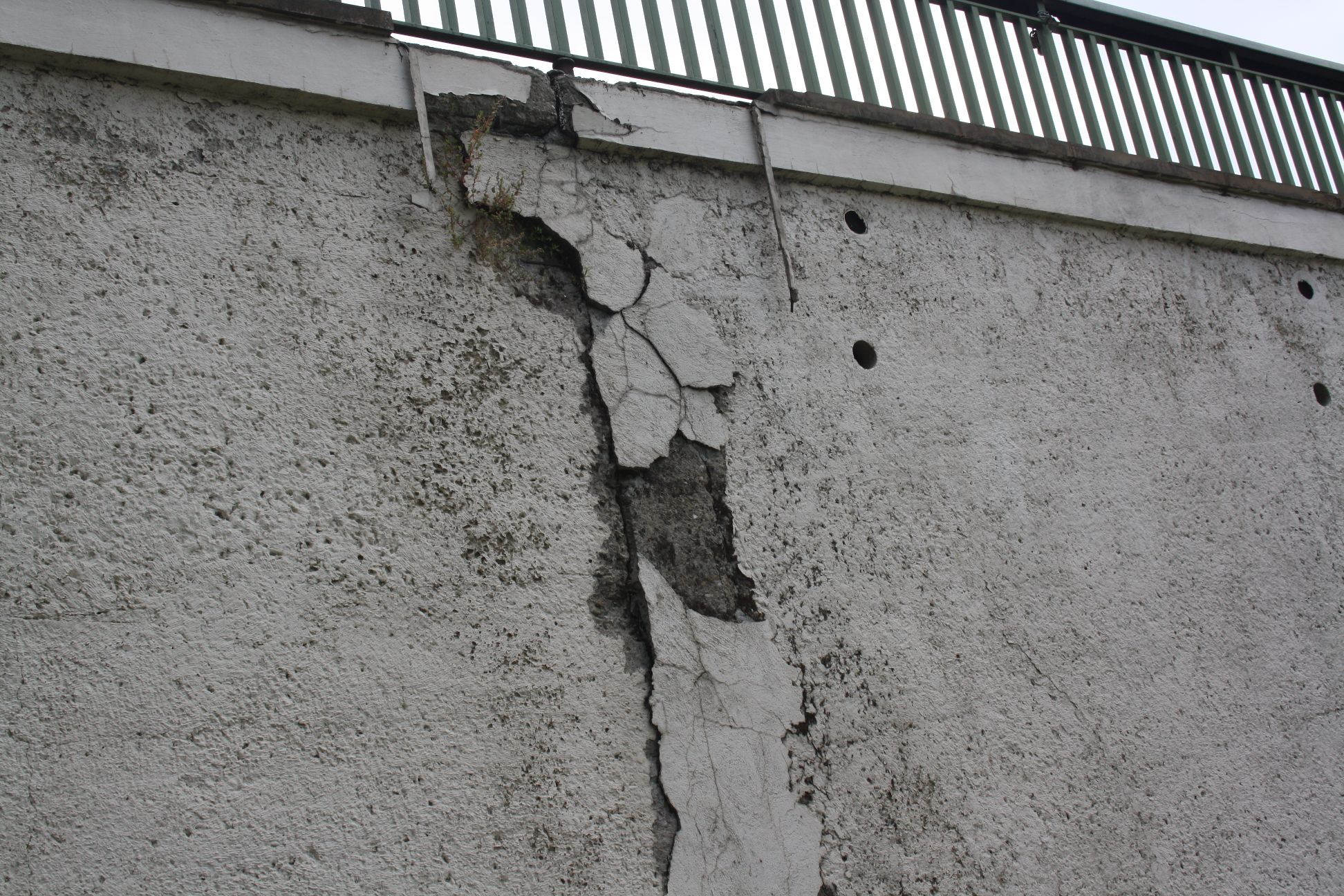

The structure has wide vertical cracks in the spandrel walls at both abutments, possibly due to thermal movements:

Crack as northern abutment

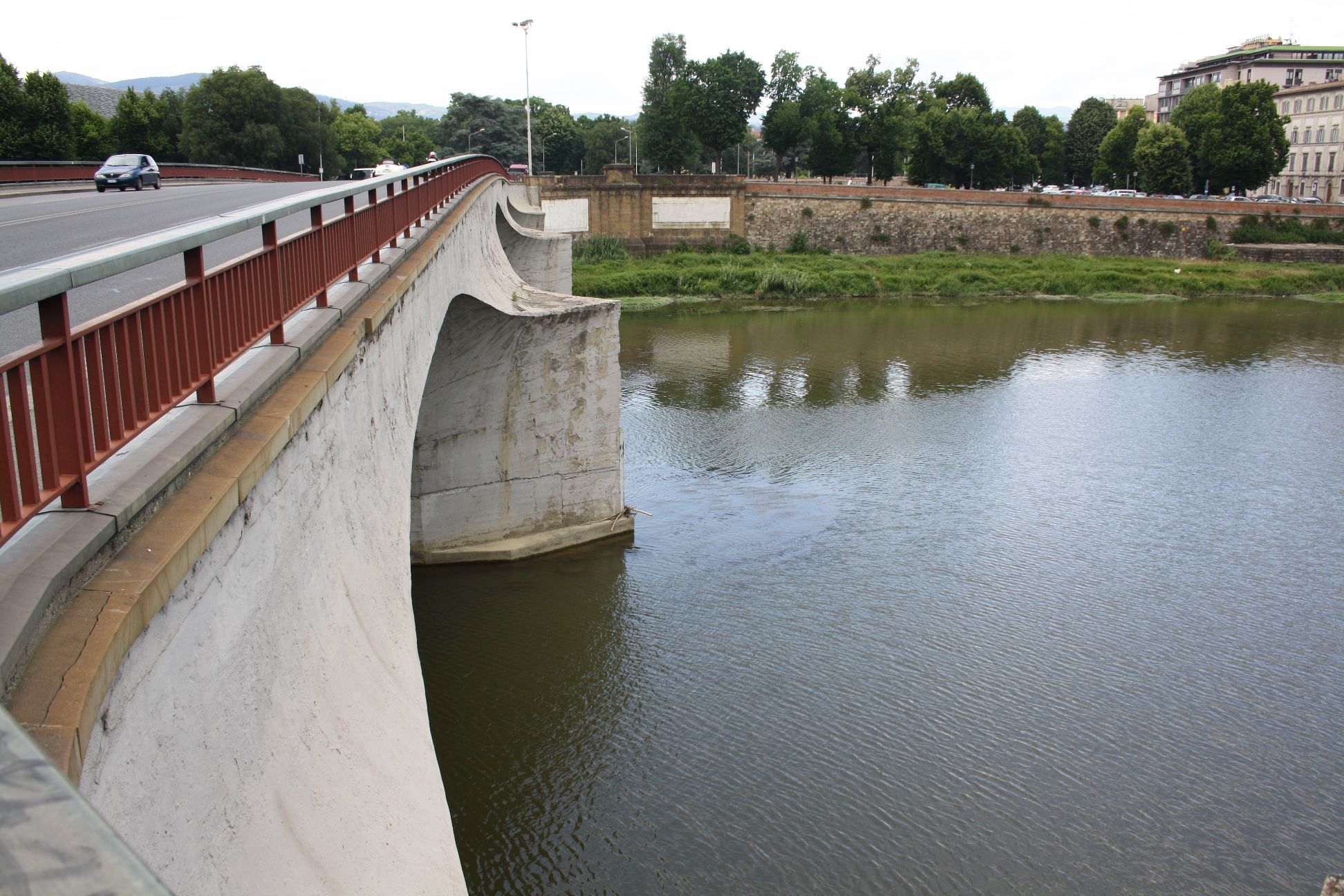

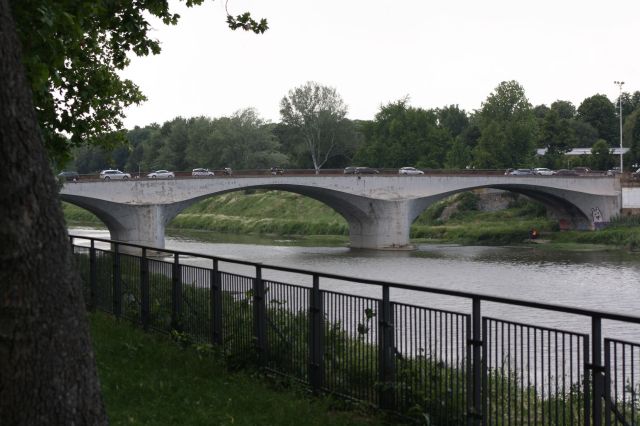

The Ponte Alla Vittoria is a 3 span bridge with flat concrete arches. The original bridge on this site was also a steel suspension bridge.  The new bridge has an unusual strongly shaped  deck, merging smoothly into the concrete piers:

Ponte Alla Vittoria

Ponte Alla Vittoria

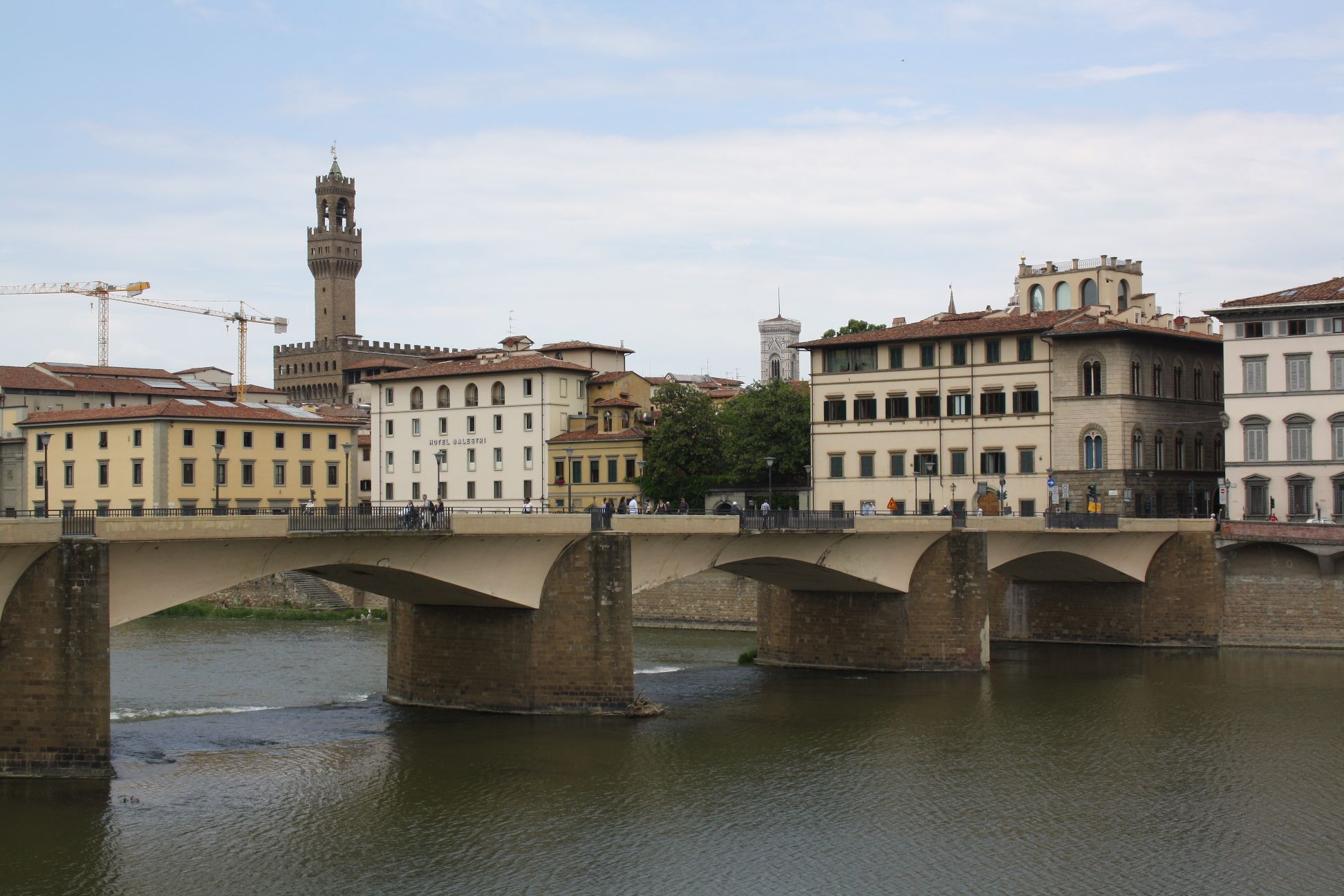

The next bridge from the East is the Ponte alle Grazie, completed in 1953, replacing a 9 span arch bridge originally built in 1227 and rebuilt in 1345.  The new structure is a 5 span reinforced concrete arch structure, but its form is clearly based on that of the adjacent Ponte Vecchio, especially in the relationship of the deck and piers:

Ponte alle Grazie

The design of this bridge was subject to a competition, with some controversy about the use of reinforced concrete rather than traditional materials, described (in Italian) at: Ponte alla Grazie.

Ponte alle Grazie

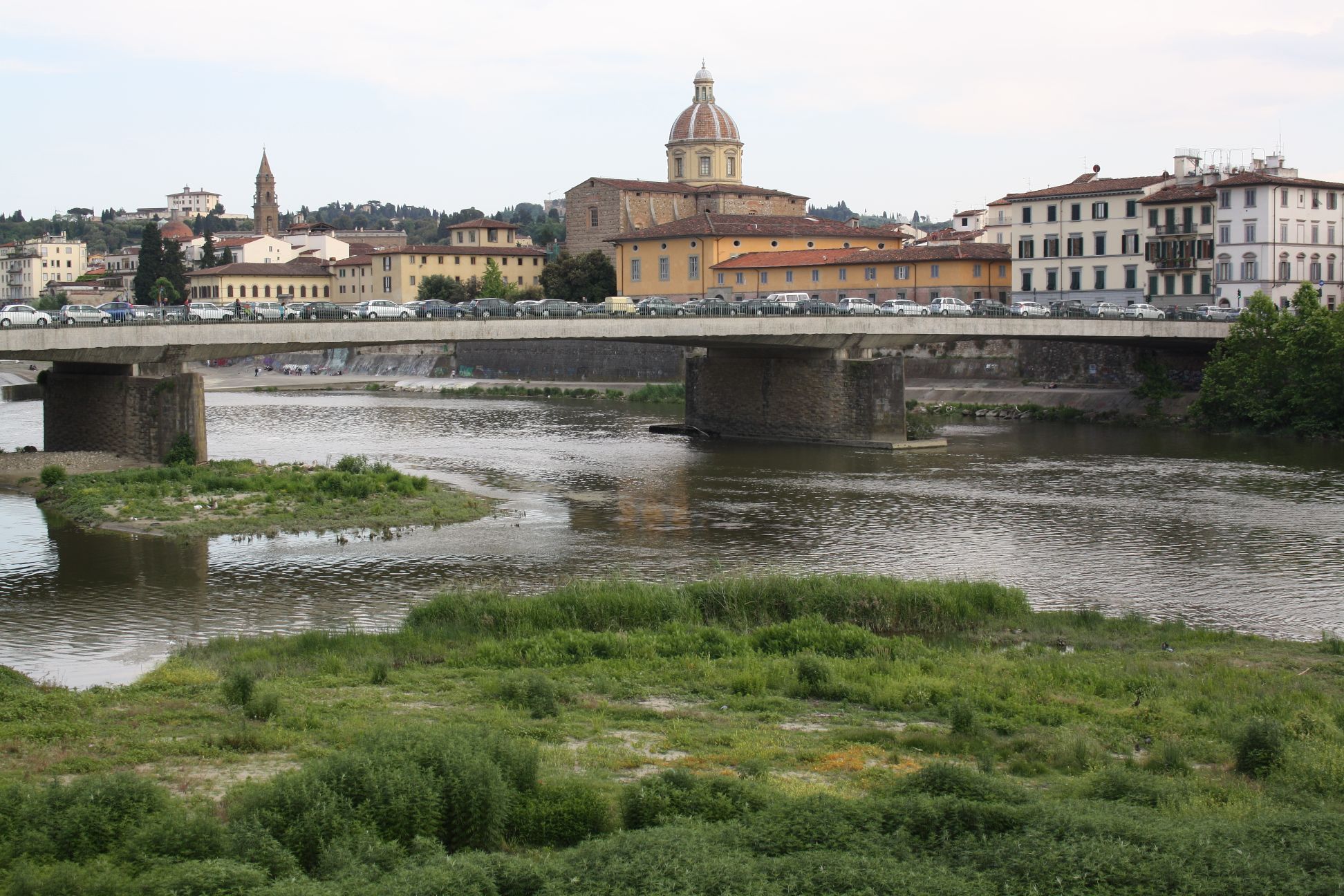

The remaining reinforced concrete bridge is the Ponte Amerigo Vespucci, which is described in the Wikipedia article as an arch, but is in fact a three span prestressed concrete structure:

Ponte Amerigo Vespucci

The bridge construction was completed in 1957, replacing a temporary structure completed in 1949. Further details of the bridge design and construction are given (in Italian) at: Ponte Amerigo Vespucci

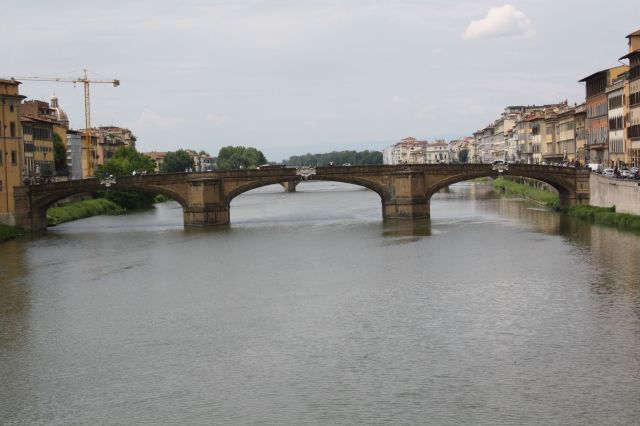

The two new bridges downstream of the Ponte Vecchio are both replicas of the original structures at their sites.  The Ponte Santa Trinita is described in the Wikipedia article as the oldest elliptic arch bridge in the world, the previous bridge having been constructed in 1567 to 1569, replacing bridges built in 1252, 1333, both of which were destroyed by floods.

Ponte Santa Trinita

The Ponte alla Carraia is a 5 span segmental arch bridge completed in 1948.

Ponte alla Carraia

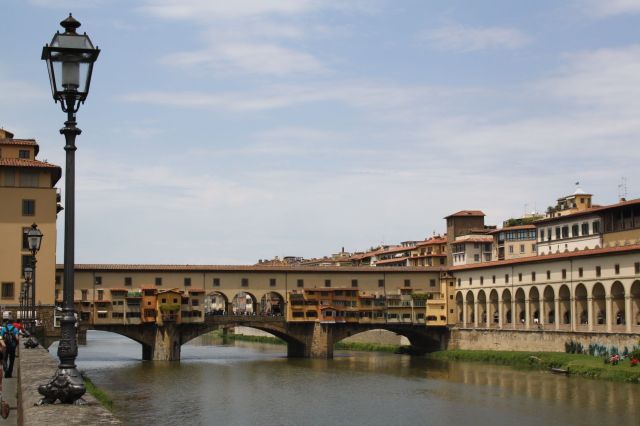

Finally the sole remaining old bridge structure is the famous Ponte Vecchio.

Ponte Vecchio

Known more for the gold shops that still line the bridge than for any structural innovation, it is nonetheless an early example of a flat segmental arch construction, having been completed in 1345 with a maximum span of 30 m and rise of 4.4 m.

Ponte Vecchio

This entry was posted in Arch structures, Historic Bridges, Newton and tagged , , , , , , , , . Bookmark the permalink.

3 Responses to Seven Florence Bridges

  1. Bill Harvey says:

    Nice collection Doug. Ponte Alla Vittoria is very similar to some of Perronet’s bridges with the undercut shape also used by Telford at Over. Bill


  2. dougaj4 says:

    Thanks Bill. The undercut shape also features on some of the bridges over the Tiber that will be featured here in the next week of so. It will be interesting to see how the dates of the Italian examples compare with Perronet’s work.
