Digitising logarithmic scales

Posted on April 16, 2010 by dougaj4

At the suggestion of the Exceltipsmonster, I have modified the DigitGraph spreadsheet presented in the previous post to also work with logarithmic scales. Dowload the updated spreadsheet from here.

The function now has two additional optional arguments, Xlog and Ylog:

 =DigitGraph(Shape Name, Xmax, Ymax,  Xorigin=0, Yorigin=0 ,Xlog=False ,Ylog=False)

Either or both scales may be entered as True, in which case the corresponding origin value must be greater than zero.

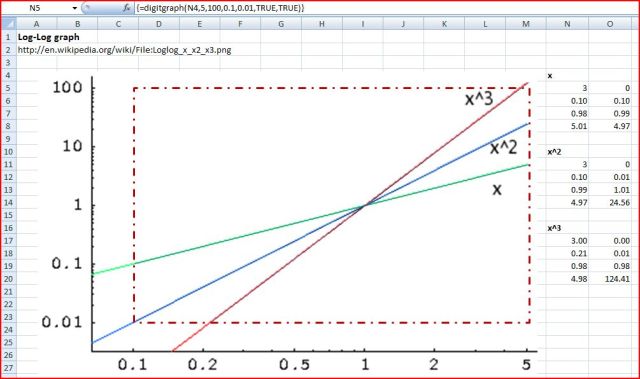

Log-Log graph example, click for full size view

This entry was posted in Excel, UDFs, VBA and tagged , , , , . Bookmark the permalink.
