The ULS Design Functions spreadsheet has been updated with the addition of provision for the Eurocode 2 rectangular stress block. The new spreadsheet can be downloaded from: ULS Design Functions.zip (including full open-source code).
For more details see: ULS Analysis of Concrete Beams; now with added units

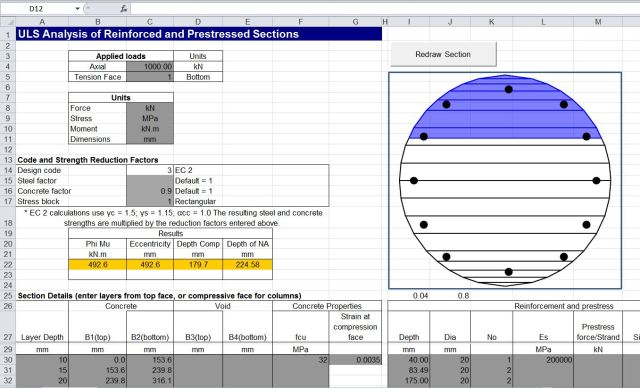

Typical input screen:
 | Jose Luna on More updates to ArcSpline and… |
 | Lucas Beattie on Drawing in Excel – … |
 | marcengineer on More on combined shear and ben… |
 | dougaj4 on More on combined shear and ben… |
| Marc on More on combined shear and ben… |
 | Sukrit Ghorai on Biaxial bending update |
| dougaj4 on Biaxial bending update |
| Sukrit on Biaxial bending update |
| A not so easy proble… on Pint, MPmath and implied units… | |
| dougaj4 on ULS design of circular reinfor… |
 | Dakota on ULS design of circular reinfor… |
 | Marcus747 on Commenting a block of code in… |
| dougaj4 on Biaxial bending update |
| Sukrit on Biaxial bending update |
 | DT67 on Using ConbeamU |
Newton Excel Bach, not (just) an Excel Blog
great,
im just curious why interaction diagram is going crazy in max. normal force nearby area, when non-symetrical reinforcment is defined?
LikeLike
I’ll have a look. I did have some problems with the circular section giving one point on the interaction diagram being way off with the Eurocode, but not the other codes. I thought I had that fixed, but evidently not.
LikeLike
in the picture you can see what i mean
LikeLike
See: https://newtonexcelbach.wordpress.com/2013/07/17/concrete-uls-spreadsheet-update-2/
Thanks for the feedback, and please let me know if you find any more problems.
LikeLike
Pingback: Concrete ULS spreadsheet update-2 | Newton Excel Bach, not (just) an Excel Blog
you’re welcome, what have been changed?
as i see now diagram for tface=1 and tface=0 is closing nicely 🙂
LikeLike
Please see problem with graphic if I do tension for both sides
https://www.dropbox.com/s/cpfjysell2lf0lw/ULS%20Design%20Functions-problem.xlsb?dl=0
LikeLike
Hi metroxx,
Thanks for letting me know about this problem (and the other ones). Looking at the revisions, it looks like the fix in 2013 didn’t work when the heavier reinforcement is in compression.
Can you have a look at:
http://interactiveds.com.au/software/ULS%20Design%20Functions-problem-fixed.xlsb
and let me know if that fixes it for you.
LikeLike
Works fine, thank you.
LikeLike
There no calculation for max. pure tension (as max. pure compression)?
In case if I want to draw full (closed) interaction diagram 🙂
(I even can’t imagine when calculation for tension is needed so it is just for beautiful picture and not so important).
LikeLike
