Drawing in Excel 7 – Creating drawings from coordinates

Previous Post, Drawing in Excel 6

The file PlotXYcontains routines to plot scale drawings in Excel from a list of XY coordinates of node points, node points for each shape, and formatting details for each shape type.  The plot is scaled to fit within the selected plot range and, unlike Excel charts, is scaled equally in the X and Y directions, so circles will stay circular.  Shapes may either be defined as polylines, with a series of points, or by using any of the built in Excel shapes.

Examples of the output are shown below, and data for the first three is included in the download.  The final example was plotted from about 250,000 node points, using over 12,000 polyline shapes (using Excel 2007), illustrating that this tool is capable of producing drawings from very large data sets.

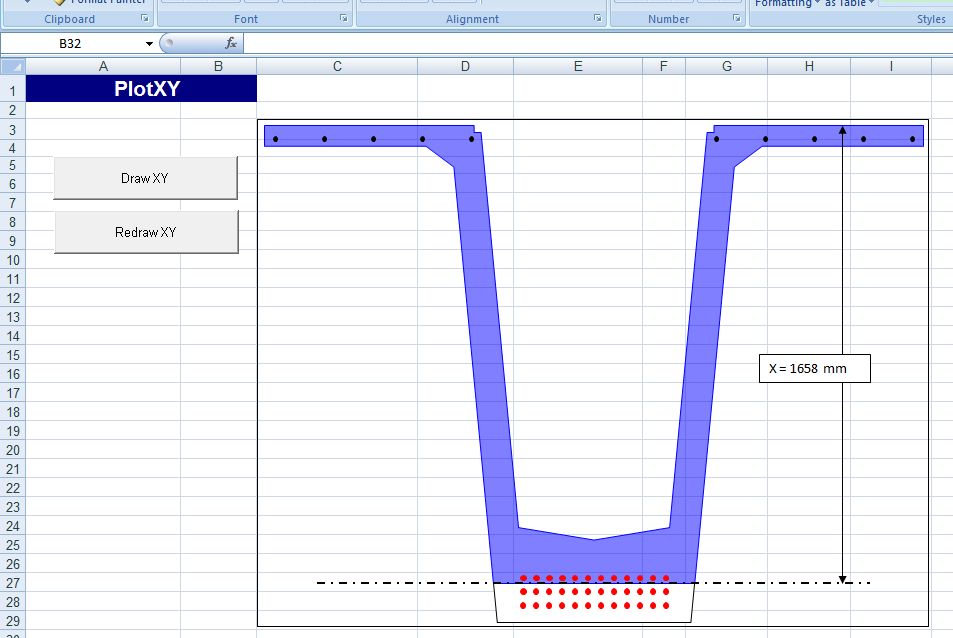

Super T bridge beam cross section

Super T bridge beam cross section


Finite Element Mesh for a Buried Precast Arch Structure


Concentric squares, or a square spiral?

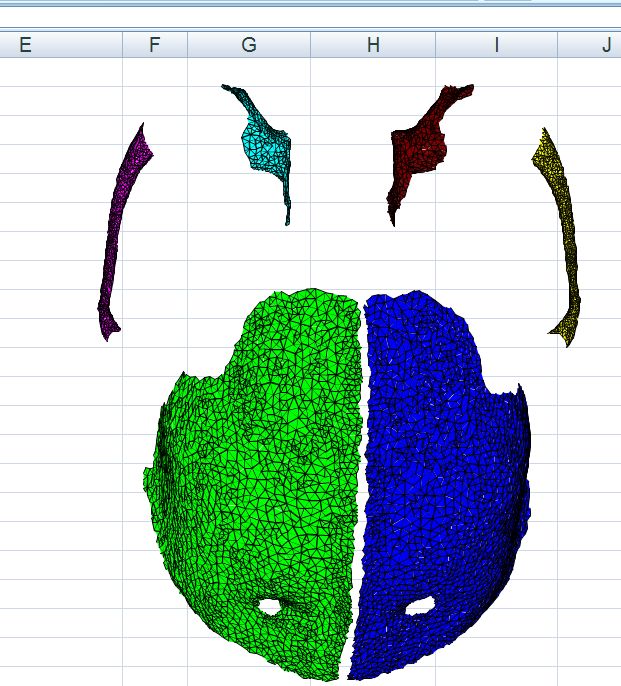

Detail of a very large finite element model of a bat skull

Detail of a very large finite element model of a bat skull


Any comments or requests for additional features?  Please let me know.
