Results of the continuous beam spreadsheet were last checked against Strand7 results 10 years ago. I have now updated this check with the latest version (4.19), which can be downloaded from:

ConBeamU.zip

The download file now includes:

• ConBeamU.xlsb: The complete spreadsheet, including examples of all functions
• ConBeamU-CheckDec25.xlsb: As above, also including the input for all the Strand7 checks
• Check conbeamU-Dec25.xlsb: Summary of check results, including ConBeam and Strand7 results and graphs for all 90 cases.
• ConBeamU-Template.xlsb: Spreadsheet including all VBA code and required units data, but with all examples removed.

The Strand7 check has 15 different span arrangements, each with 1 of 6 different support conditions:

The span arrangements and support conditions are listed on Sheet1 of the summary spreadsheet:

On the ConBeamU-CheckDec25 spreadsheet the Conbeam Check tab is set up with all 15 span arrangements, and the support restraint type can be selected by entering 1-6 in the “Run Type” cell (F2):

The results for the 6 different support conditions are copied to Sheets 1-6 of the Check conbeamU-Dec25 spreadsheet, together with the equivalent Strand7 results:

Both Conbeam and Strand7 results for shear, moment, slope and deflection are plotted for any selected “Span Type” (1-15):

The main ConBeamU spreadsheet has help on each of the available functions on the Functions tab:

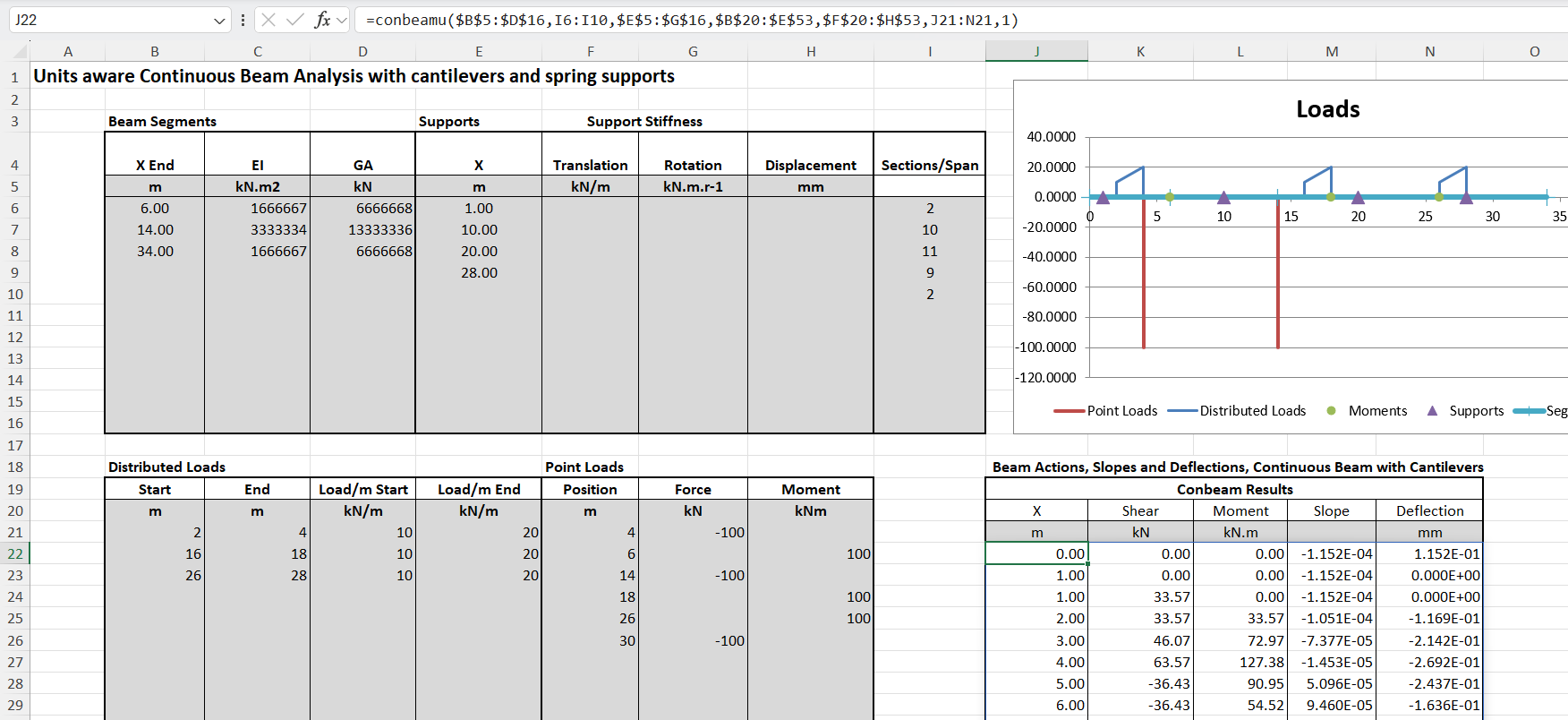

The Strand7 checks used the ConBeam function, which requires consistent units. The ConBeamU function allows a wide range of different units to be used:

See the “Ext Unit List” tab for a list of all recognised units, and see Using ConbeamU for more information on adding to the units list, and more details on using the available functions.
