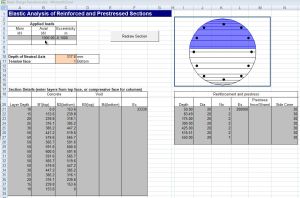

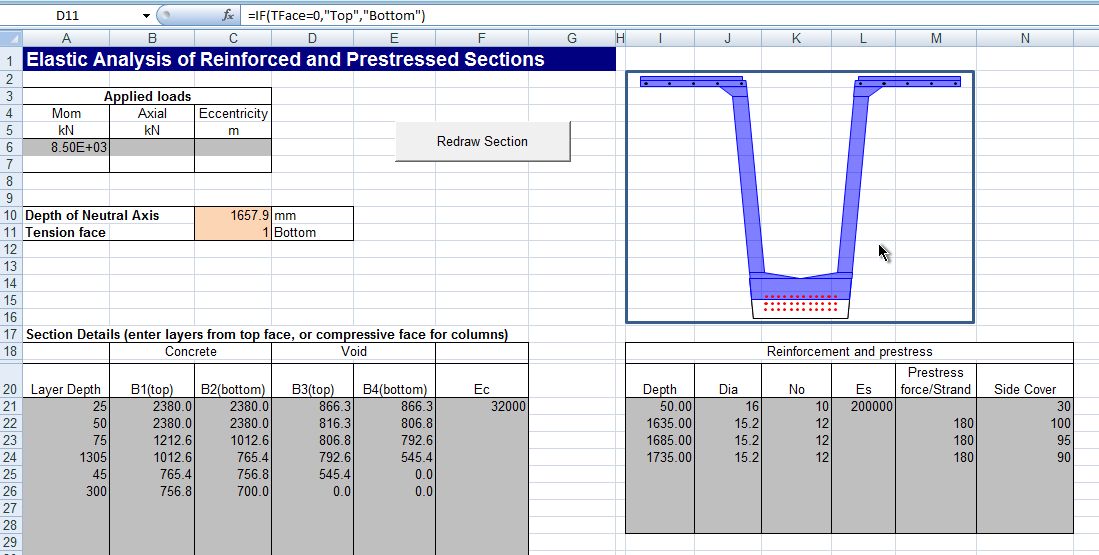

The theory presented in the previous 2 posts in this series has been incorporated into an Excel UDF, allowing concrete and reinforcement stresses and strains to be evaluated quickly and easily for reinforced and prestressed members of complex cross-section, subject to combined bending and axial load.

The Excel file also includes UDFs for solution of polynomial equations up to quartic, and routines for plotting the cross section shape.

Beam Design Functions Download
