The spreadsheets presented in earlier posts in this series have been simplified for use with rectangular sections with two layers of reinforcement. The functions EStress (for elastic analysis of stresses, strains and crack widths) and UMom (for the ULS analysis of bending, axial load and shear capacity) can be found in the spreadsheet RC Design Functions7.

Examples of the output from these functions are shown below:

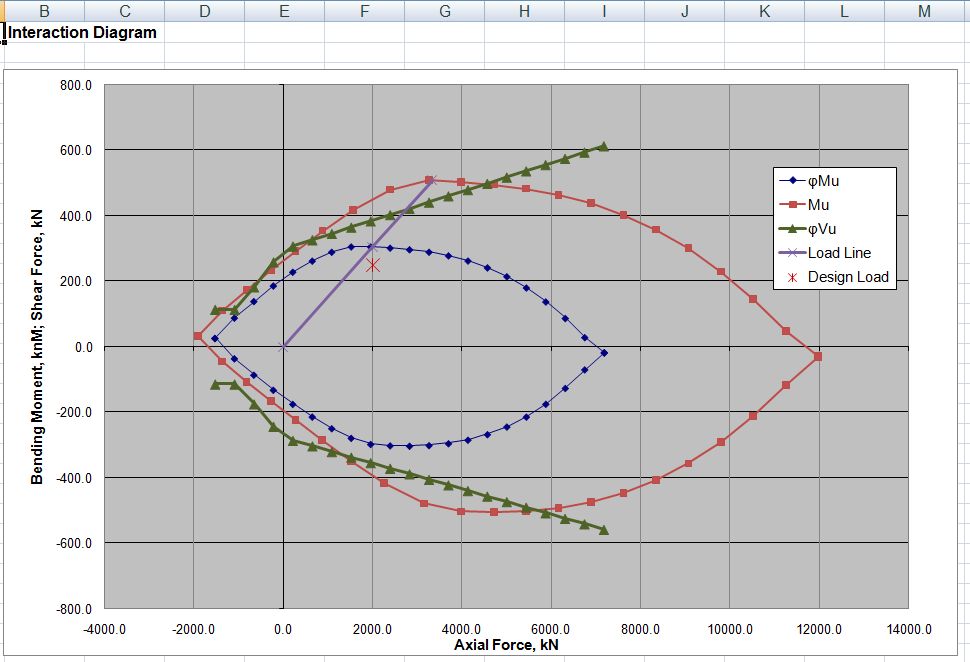

Interaction Diagram generated by UMom

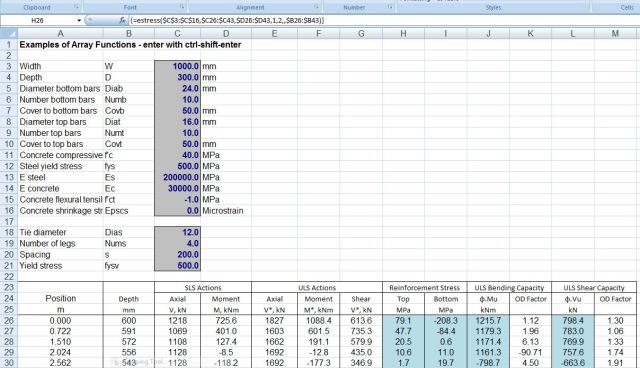

Estress and UMom entered as array functions
