Continuous Beams with Shear Deflections

The Macaulay Spreadsheet has now been modified to optionally include shear deflections, as well as a new option to output support reactions, and fixes to minor bugs.

The revised spreadsheet (including full open source code) can be downloaded from:

The screenshots below show an example (included in the download file) of a three span beam with spring supports and shear deflections included, compared with output from the Strand7 FEA program.  It can be seen that there is near exact agreement for both beam actions and deflections.

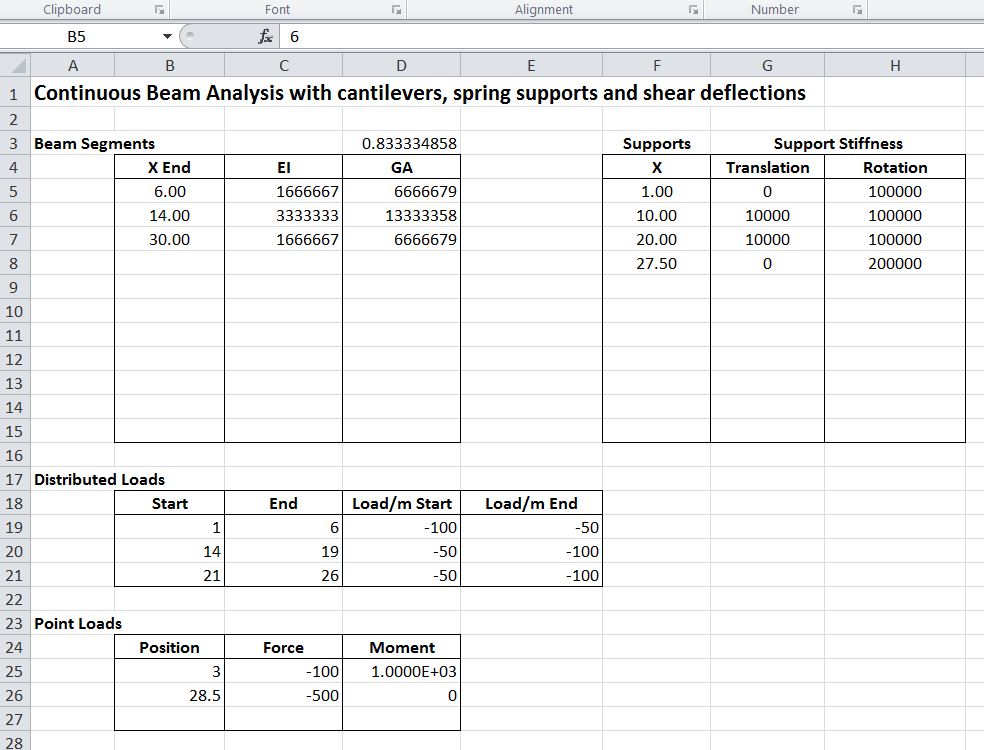

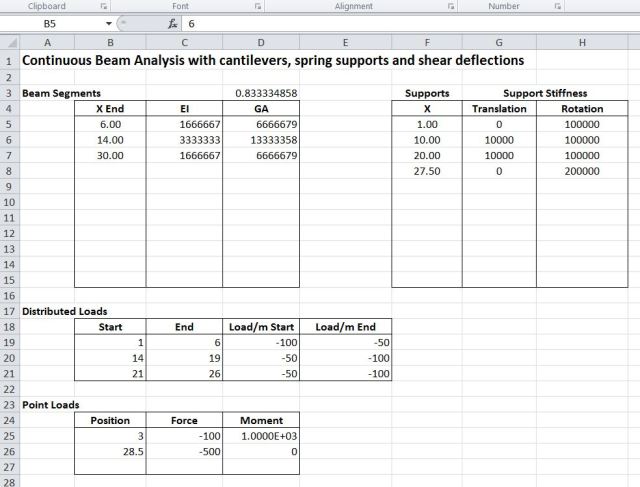

Conbeam function input, including shear stiffness

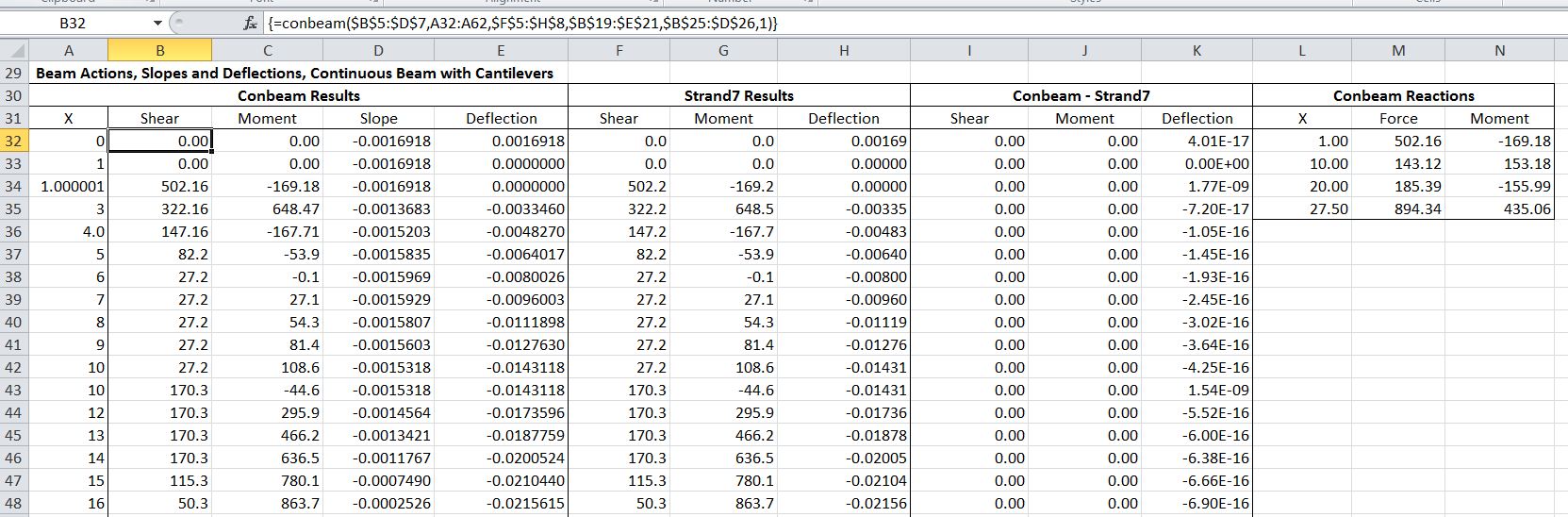

Part of Conbeam function output, compared with Strand7 (click for full size view)

Graphical output comparing ConBeam and Strand7 results
