Beam actions and deflections, 3D or 2D

Two new functions have been added to the ConBeamU spreadsheet, last discussed here.

The new version can be downloaded from, including full open-source code.

The new functions, BeamAct3D and BeamAct2D calculate forces, moments, deflections and rotations along a 3D or 2D beam under specified end conditions and loading.  The output is calculated based on the conditions specified at End1, and optionally the error in the calculated values at End 2, compared with the input values, may be returned.  If this option is not used the End2 data is ignored.

The examples below show input for a uniform beam, but the beam may be subdivided into any number of segments with differing section properties.  The current version of the functions performs linear analysis only, but the section properties can be easily adjusted on the spreadsheet, based on the output actions, to provide non-linear materials analysis.  Later versions will have this functionality built-in, and will also provide for geometric non-linear effects.

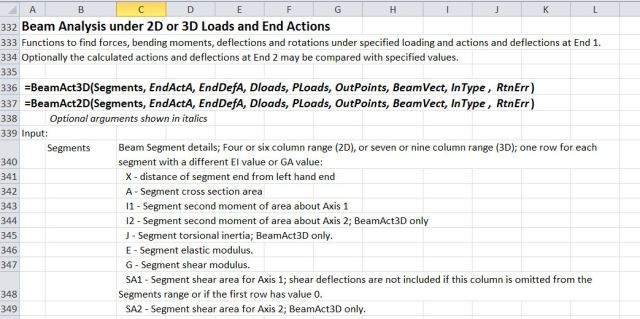

Details of the function input and output are shown in the screenshots below (taken from the Functions sheet of the spreadsheet).  For more details of how to use Excel User Defined Functions and Array Functions see: Using Array Functions and UDFs.


BeamAct Functions Input 1


BeamAct Functions Input 2

The output consists of 12 or 6 columns for the 3D or 2D version respectively:


Examples of both functions are found on the BeamAct sheet:

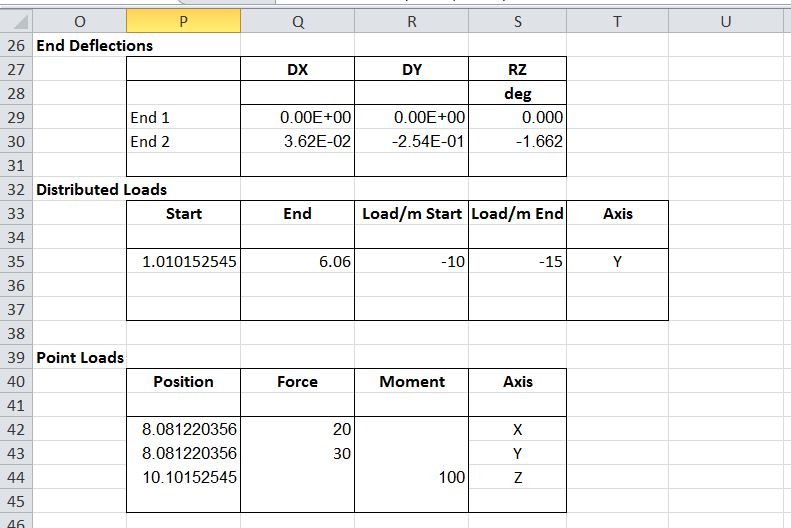

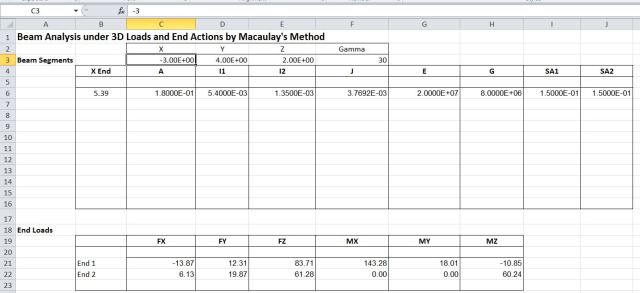

BeamAct3D Input


BeamAct3D Input


BeamAct3D Output; click for full size view


BeamAct3D Deflection Results Compared with Strand7


BeamAct2D Input 1


BeamAct2D Input 2


BeamAct2D results

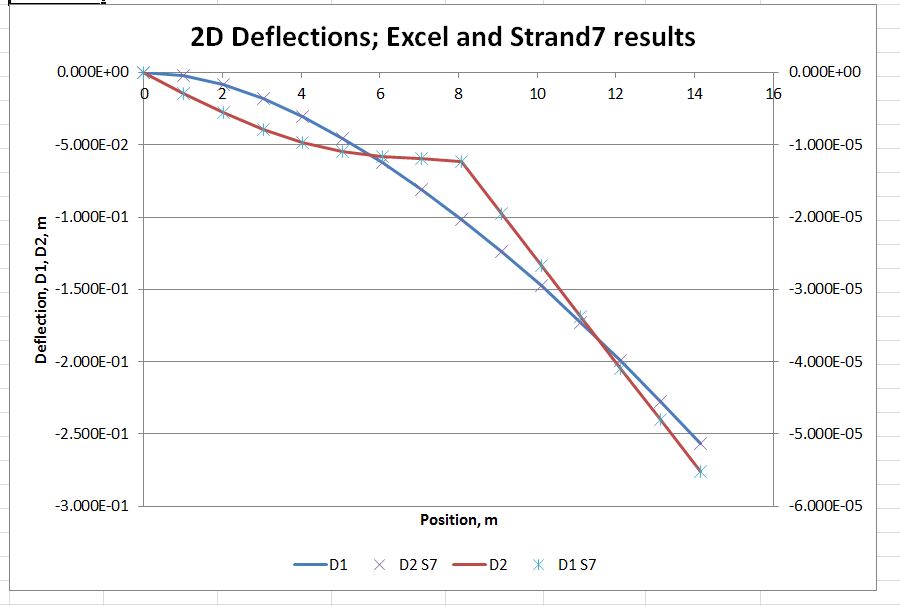

BeamAct2D Results compared with Strand7
