PlateStress Update

The functions from the PlateStress spreadsheet (details here) will be incorporated in the FEA spreadsheets currently being presented.

In the process of using these functions I made a couple of improvements:

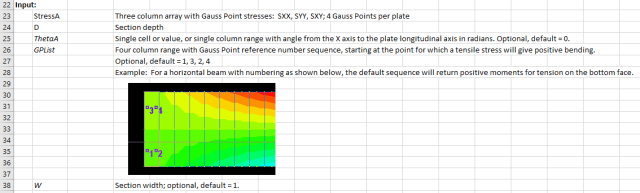

  • The required sequence of the Gauss Points numbers was clarified:

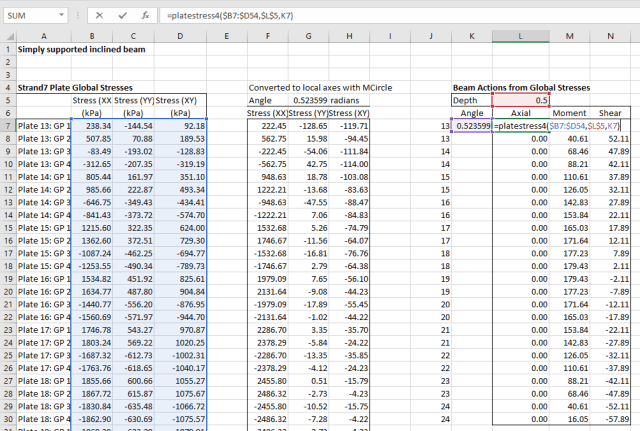

  • The plate angle input was modified, so that for a straight beam a single value would be accepted:

Download from
