Beam Fixed End Actions by Macaulay’s Method

Following the previous post examples have been added to the Macaulay Spreadsheet illustrating the use of the method to find fixed end moments and reactions for a beam fixed at one or both ends, and subject to any number of combinations of trapezoidal distributed loads and point loads and moments.  The beam may be of uniform cross-section, or divided into any number of segments with different properties.  The download spreadsheet contains full open source code.

The basis of the method is:

  • Find the slope of the ends for the applied loads assuming simple supports, using SSSpan.
  • Find the end slopes due to a unit moment applied at the end.
  • Solve the resulting simultaneous equations to find the end moments that will give the calculated end slopes under your loads, with a simply supported span.  The fixed end moments are the equal and opposite reactions to these moments.

This procedure is incorporated in the User Defined Function (UDF) FEA().  The screenshots below show a description of the UDF input and output, and some examples taken from Formulas for Stress, Strain, and Structural Matrices, Walter D. Pilkey and The Reinforced Concrete Designer’s Handbook, C.E. Reynolds and J.C. Steedman.  Finally a more complex example has been compared with the results of a Strand7 analysis.  In all cases the UDF results and the formula or analysis values are in exact agreement.

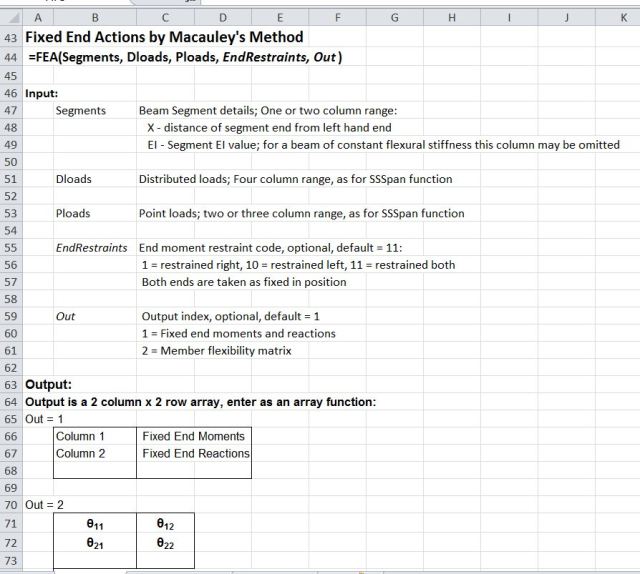

FEA Input and Output

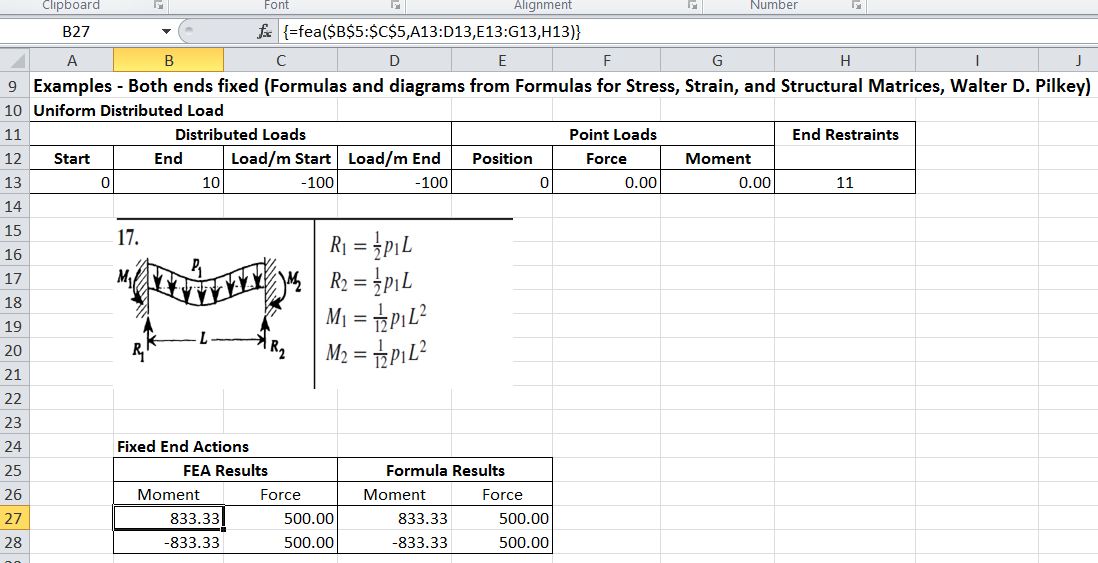

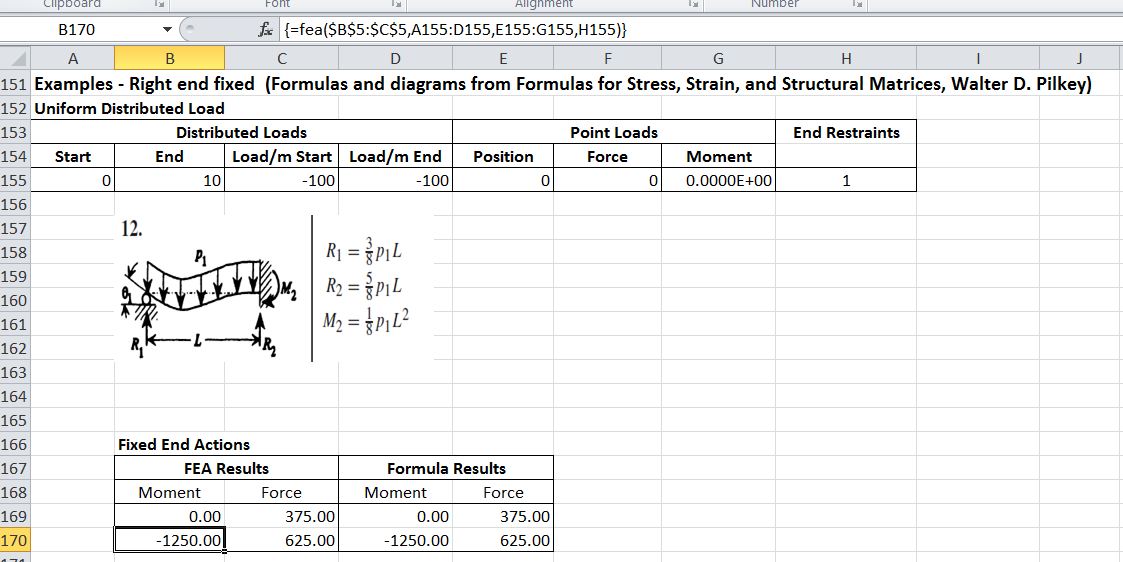

Uniform Distributed Load

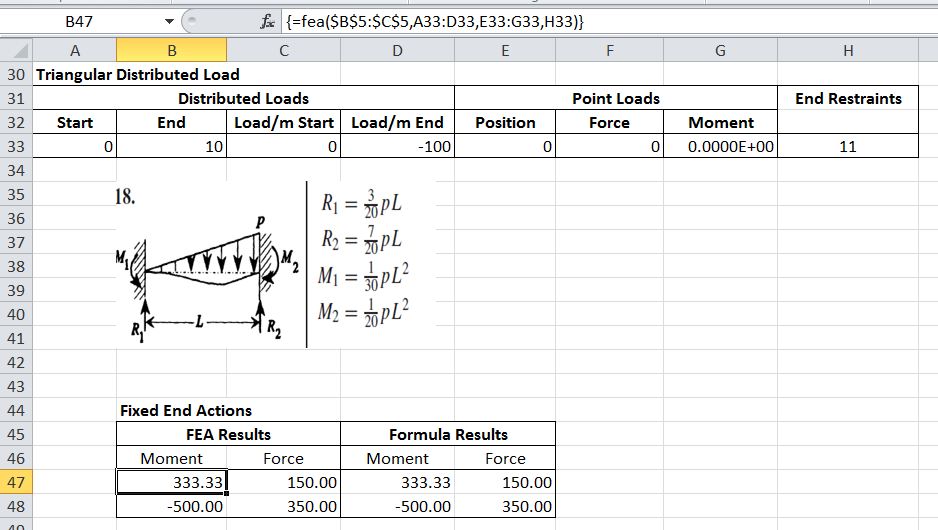

Triangular Distributed Load

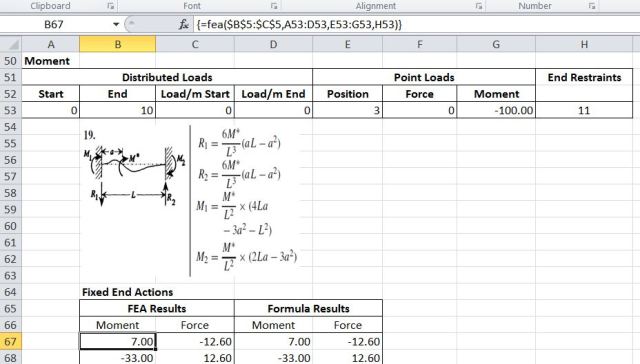

Moment

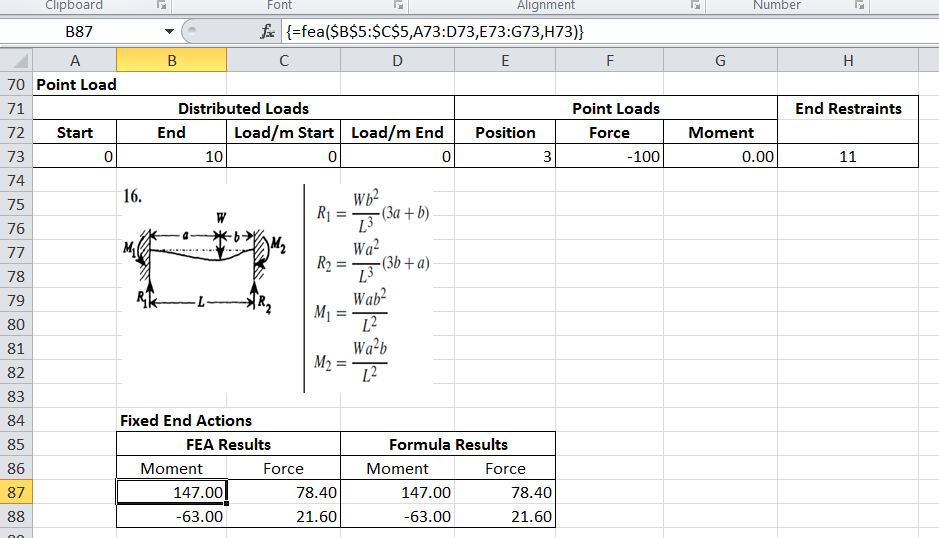

Point Load

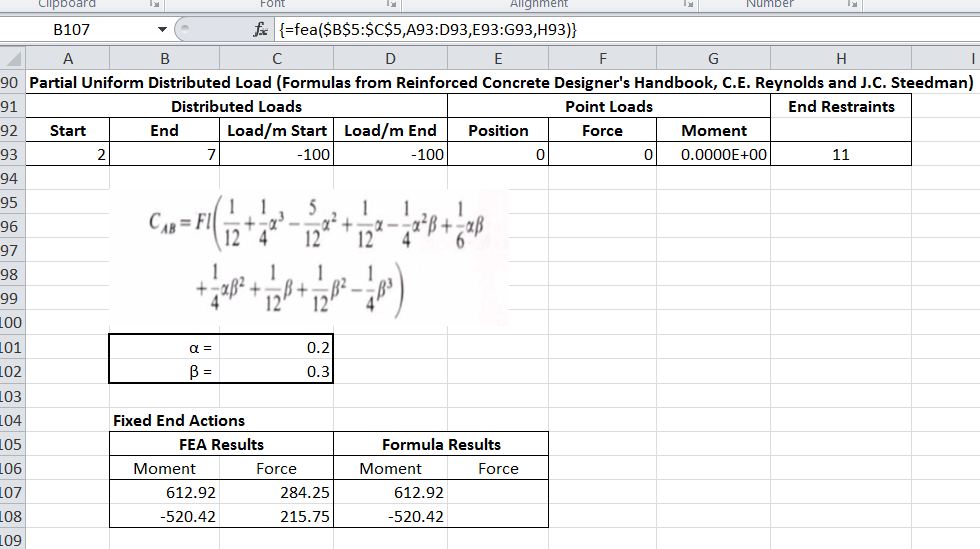

Partial Uniform Distributed Load

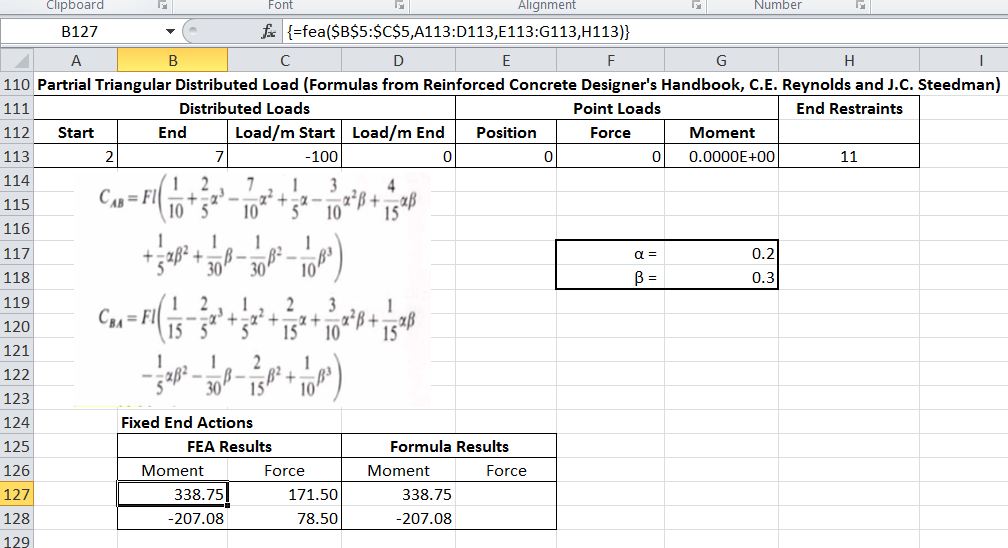

Partial Triangular Distributed Load

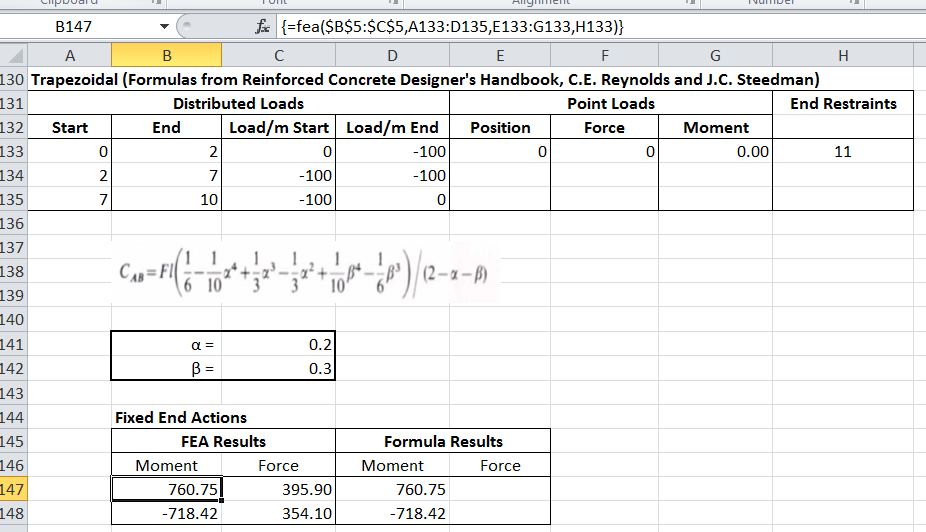

Trapezoidal

Uniform Distributed Load

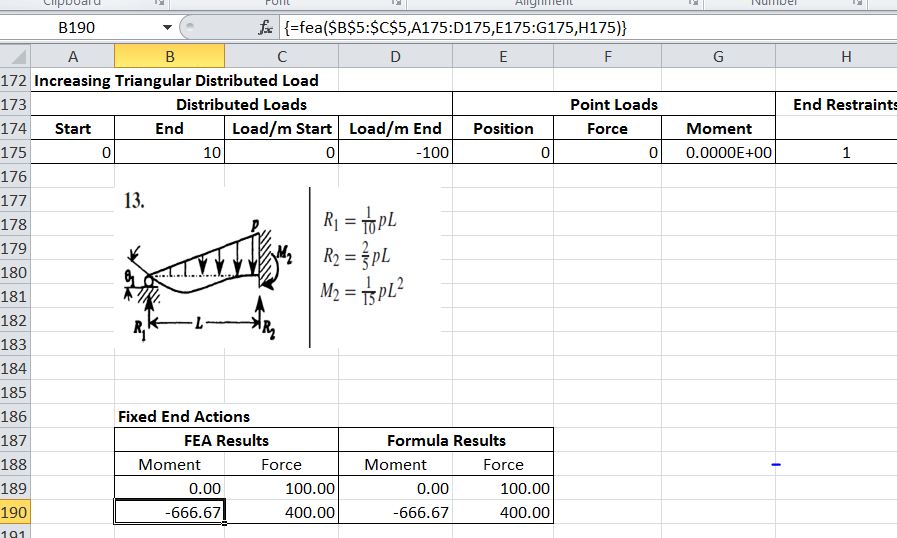

Increasing Triangular Distributed Load

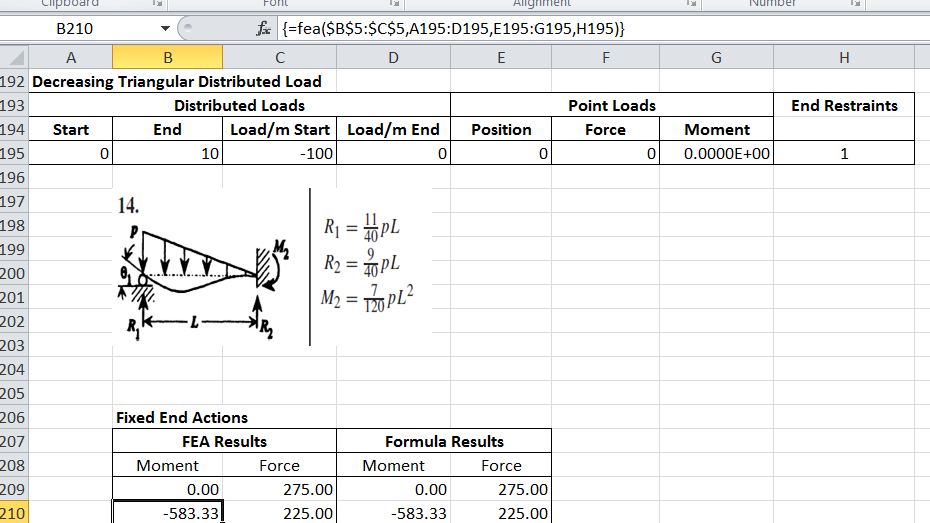

Decreasing Triangular Distributed Load

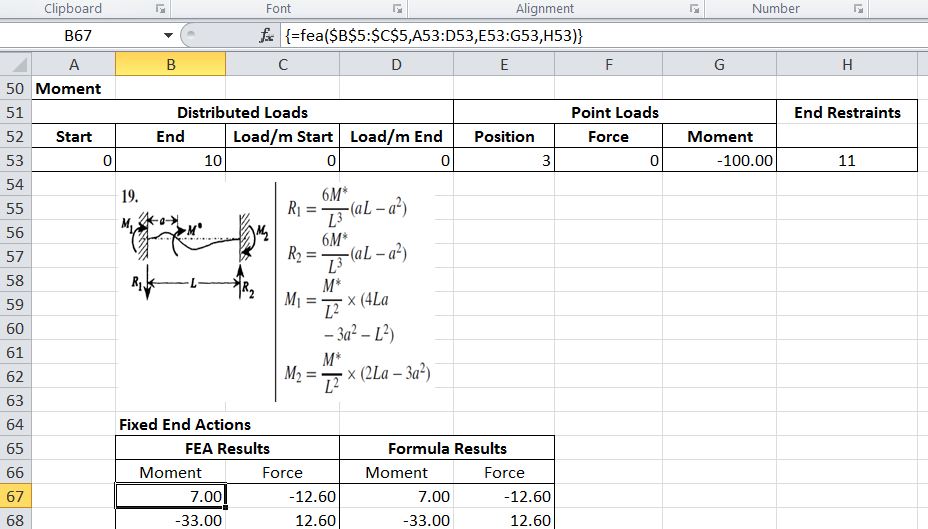

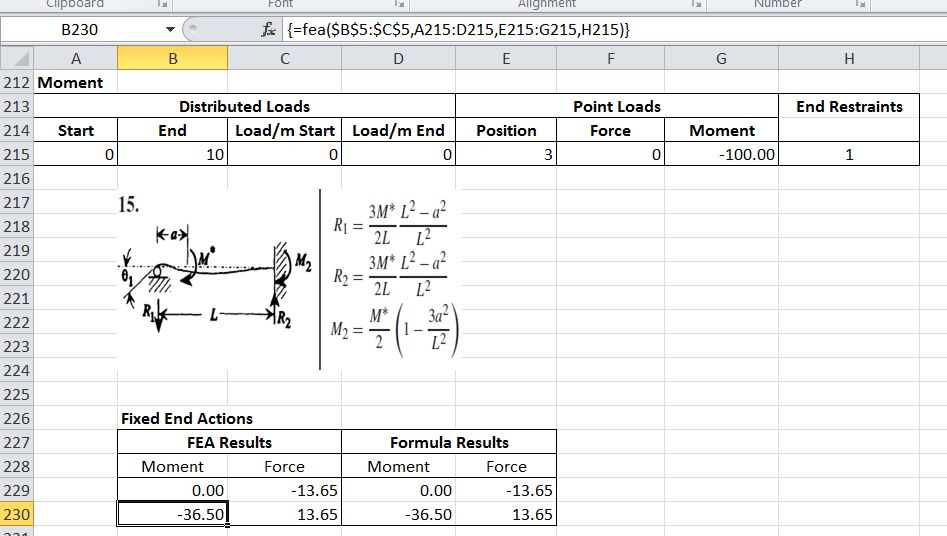

Moment

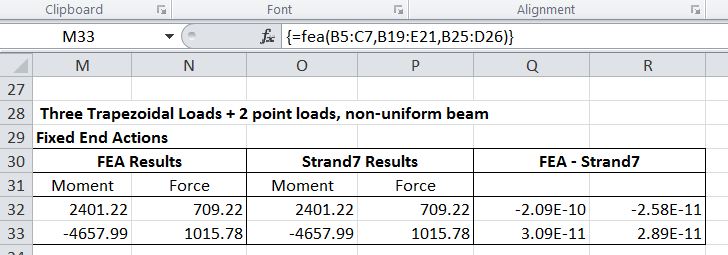

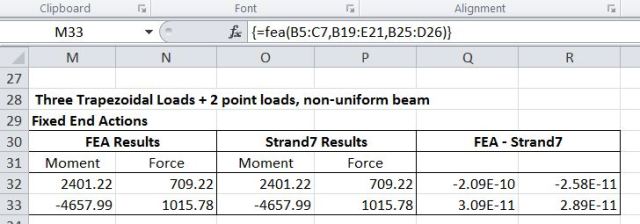

Complex Loading
